# Quality Products Dedicated to Safety, Efficiency, Economy

## PRODUCTS

### Trolleys

- All Korean parts and materials
- Meets ASME/ANSI Standards
- ISO 9001 and TUV-CE Certified factory
- Tested to 150% of rated load
- Anti-drop lugs are standard
- Sealed ball-bearing wheels
- Wheels designed for standard and wide-flange I-beams
- Load equalizing suspension distributes load to wheels
- Standard hand chain length for Geared Trolleys is 10ft
- Custom hand chain lengths available on request

Trolley Diagram

New

- Trolleys to fit 8” flange widths available upon request

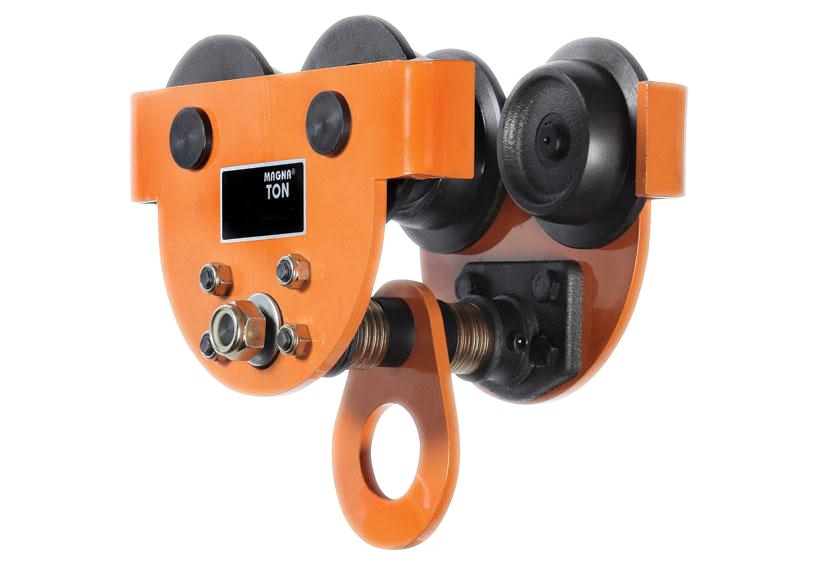

Plain Trolley

### PTR050 - Plain Trolley

- Capacity (lbs): 1,100
- I-Beam Flange Width (in): 3-5
- Min. Radius Curve (in): 35
- Headroom (in): 4.7

### PTR100 - Plain Trolley

- Capacity (lbs): 2,200
- I-Beam Flange Width (in): 3-5
- Min. Radius Curve (in): 51
- Headroom (in): 4.7

### PTR200 - Plain Trolley

- Capacity (lbs): 4,400
- I-Beam Flange Width (in): 4-6.9
- Min. Radius Curve (in): 59
- Headroom (in): 6.1

### PTR300 - Plain Trolley

- Capacity (lbs): 6,600
- I-Beam Flange Width (in): 4-6
- Min. Radius Curve (in): 67
- Headroom (in): 7.3

### PTR500 - Plain Trolley

- Capacity (lbs): 11,000
- I-Beam Flange Width (in): 5-7.7
- Min. Radius Curve (in): 90
- Headroom (in): 8.7

### PTR750 - Plain Trolley

- Capacity (lbs.): 16,500
- I-Beam Flange Width (in): 5.4-7.5
- Min. Radius Curve (in): 102
- Headroom (in): 10

### PTR1000 - Plain Trolley

- Two Trolley Pins
- Capacity (lbs): 22,000
- I-Beam Flange Width (in): 5-8
- Min. Radius Curve (in): 102
- Headroom (in): 11.3

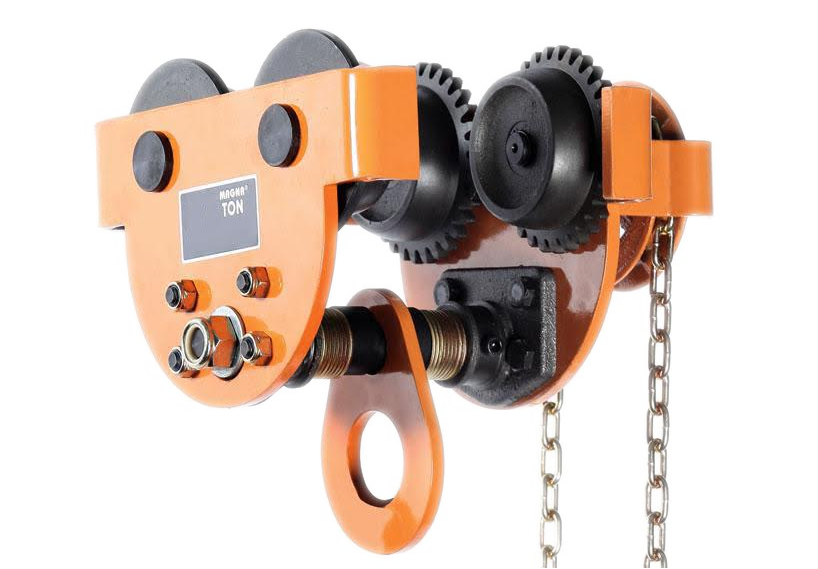

Geared Trolley

### GTR100 - Geared Trolley

- Capacity (lbs): 2,200
- I-Beam Flange Width (in): 3-5
- Min. Radius Curve (in): 51
- Headroom (in): 4.7

### GTR200 - Geared Trolley

- Capacity (lbs): 4,400
- I-Beam Flange Width (in): 4-6.9
- Min. Radius Curve (in): 59
- Headroom (in): 6.1

### GTR300 - Geared Trolley

- Capacity (lbs): 6,600
- I-Beam Flange Width (in): 4-6
- Min. Radius Curve (in): 67
- Headroom (in): 7.3

### GTR500 - Geared Trolley

- Capacity (lbs): 11,000
- I-Beam Flange Width (in): 5-7.7
- Min. Radius Curve (in): 90
- Headroom (in): 8.7

### GTR750 - Geared Trolley

- Capacity (lbs.): 16,500
- I-Beam Flange Width (in): 5.4-7.5
- Min. Radius Curve (in): 102
- Headroom (in): 10

### GTR1000 - Geared Trolley

- Two Trolley Pins
- Capacity (lbs): 22,000
- I-Beam Flange Width (in): 5-8
- Min. Radius Curve (in): 102
- Headroom (in): 11.3
