Quality Products Dedicated to Safety, Efficiency, Economy

PRODUCTS

Beam Clamps

  • Made in CHINA
  • Heavy-duty construction
  • ISO 9001 and TUV-CE Certified factory
  • Tested to 125% of Rated Capacity
  • Compact size
  • Low headroom design
  • Portable
  • Simple to install
  • Clamp jaw design applies load away from flange edge
  • Quick and easy adjustments
  • Fits wide range of beams
Beam Clamp Pin Type Diagram
Pin Type Diagram
Beam Clamp Round Eye DiagramRound Eye Type Diagram
Pin Type

BC100P - Pin Type

  • Rated Capacity (lbs): 2,200
  • Fits I-Beam Flange Width (in): 3-9
  • Net Weight (lbs): 8

BC200P - Pin Type

  • Rated Capacity (lbs): 4,400
  • Fits I-Beam Flange Width (in): 3-9
  • Net Weight (lbs): 10

BC300P - Pin Type

  • Rated Capacity (lbs): 6,600
  • Fits I-Beam Flange Width (in): 3.1-12.5
  • Net Weight (lbs): 21

BC500P- Pin Type

  • Rated Capacity (lbs): 11,000
  • Fits I-Beam Flange Width (in): 3.5-12.5
  • Net Weight (lbs): 24

BC1000P - Pin Type

  • Rated Capacity (lbs): 22,000
  • Fits I-Beam Flange Width (in): 3.5-12.5
  • Net Weight (lbs): 35

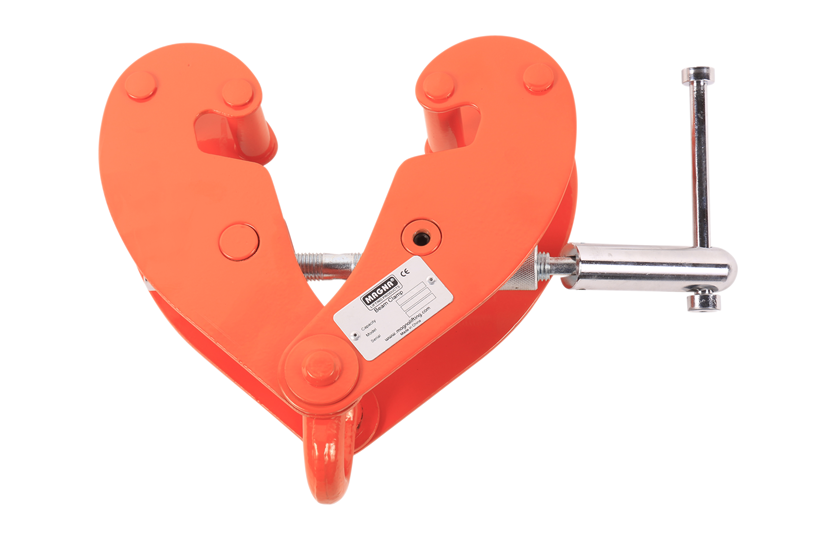

Round Eye Type

BC100R - Round Eye Type

  • Rated Capacity (lbs): 2,200
  • Fits I-Beam Flange Width (in): 2.75-9.6
  • Net Weight (lbs): 8

BC200R - Round Eye Type

  • Rated Capacity (lbs): 4,400
  • Fits I-Beam Flange Width (in): 2.75-9.6
  • Net Weight (lbs): 10

BC300R - Round Eye Type

  • Rated Capacity (lbs): 6,600
  • Fits I-Beam Flange Width (in): 2.75-14
  • Net Weight (lbs): 21

BC500R - Round Eye Type

  • Rated Capacity (lbs): 11,000
  • Fits I-Beam Flange Width (in): 2.75-14
  • Net Weight (lbs): 24

BC1000RE - Round Eye Type

  • Rated Capacity (lbs): 22,000
  • Fits I-Beam Flange Width (in): 3.2-13.7
  • Net Weight (lbs):35
